Mesh vinyl banners feature a perforated weave that lets wind pass through, dramatically reducing load on scaffolding and fencing. They are the standard solution for construction sites and large outdoor barriers.
Explore our digital-printed mesh vinyl banners designed for versatile outdoor applications. Ideal for outdoor advertising barriers, construction mesh fencing, and construction fencing wraps, our vinyl printing ensures vibrant and durable graphics, making your message stand out in various settings.
| Material | PVC-coated polyester mesh, 270 gsm, 1000D x 1000D base fabric |
|---|---|
| Weave | 9 x 9 or 10 x 10 threads per square inch |
| Open area | Approximately 30 percent hole, 70 percent print surface |
| Weight range | 260-270 gsm light duty, 340 gsm and 360 gsm heavy duty |
| Tensile strength | 1300 N/5cm warp, 1150 N/5cm weft at 270 gsm |
| Tear strength | 560 N/5cm warp, 430 N/5cm weft at 270 gsm |
| Service temperature | -30 deg C to +70 deg C |
| Mill roll width | 1.0 m to 5.0 m, welded to finished size |
| Finishing | 40-50 mm welded hem, brass grommets at 500-600 mm centres |

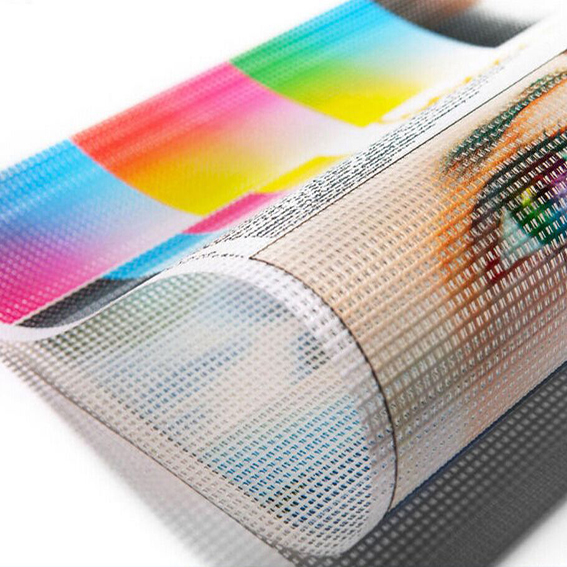

Mesh runs on the same eco-solvent presses we use for solid vinyl, but the file is handled differently. Because roughly 30 percent of the surface is open, ink that lands on a thread spreads into the hole and dulls the edge, so we hold ink limits lower than on frontlit and build density with a second pass on large solids. Fine text below about 20 mm is avoided, and we flag any logo detail that will close up at proof stage. Large flat colour fields get the same warning, because thread texture reads as a pattern and cannot be fixed in print.

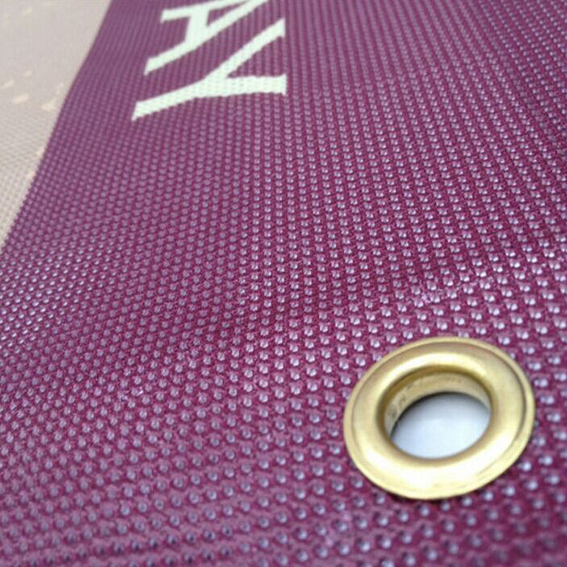

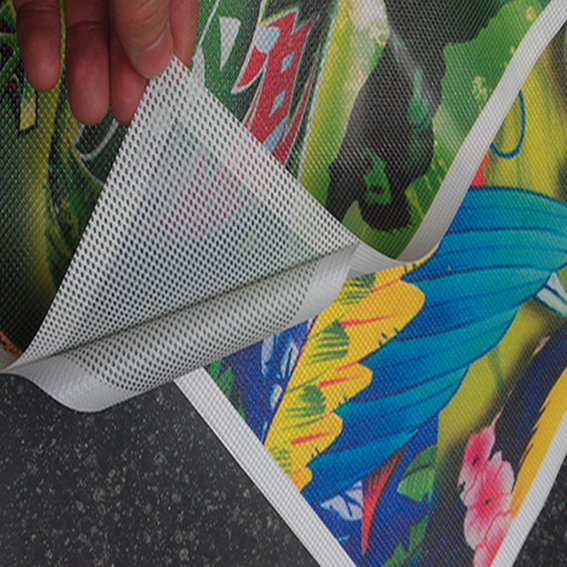

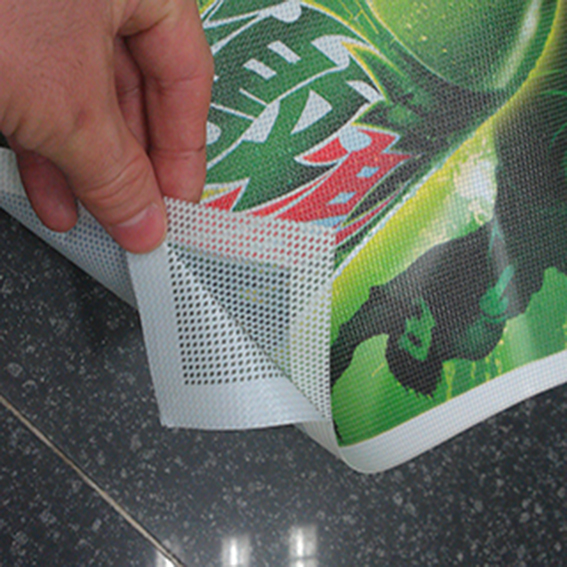

Colour is matched to a printed strike-off, never to a screen preview, since the scrim behind the coating lifts pale tones by a visible step. Finishing decides how long a fence banner survives. We heat weld a 40-50 mm hem rather than sewing it, so no stitch holes let water into the scrim, and we set brass grommets at 500-600 mm centres with doubled material at every corner. Scaffold work gets reinforced corner patches and a rope hem, and each banner is photographed flat before rolling.

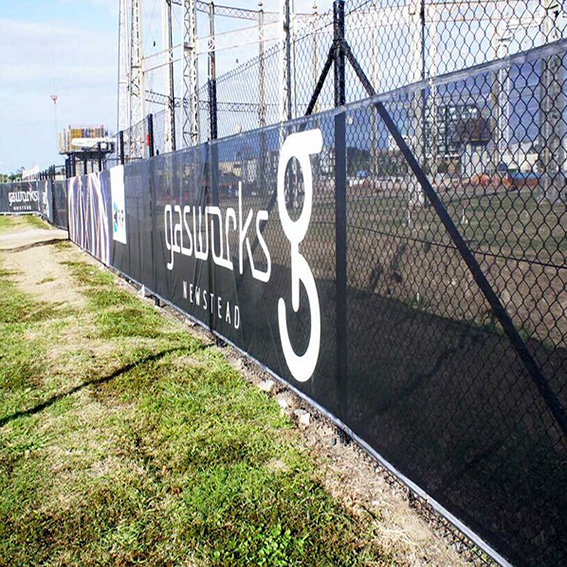

Fence banners on housing and commercial sites are our highest-volume mesh job. The open weave lets gust pressure pass through the panel instead of loading the temporary fence behind it, which is what makes a hoarding lean or a banner tear out at its corners. We cut to the fence panel module so a graphic repeats cleanly along a long elevation.

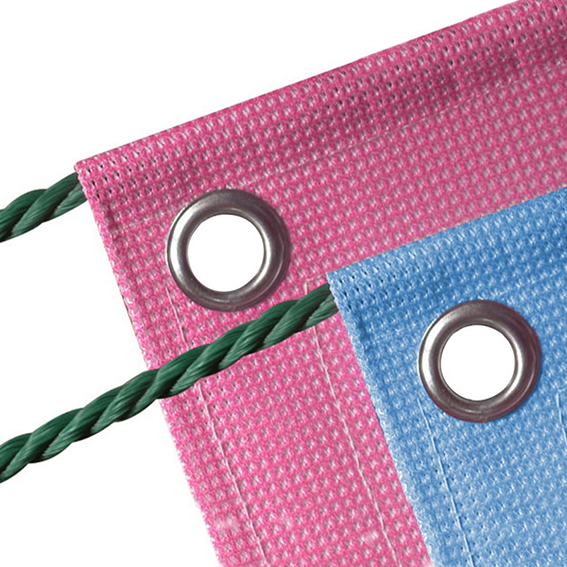

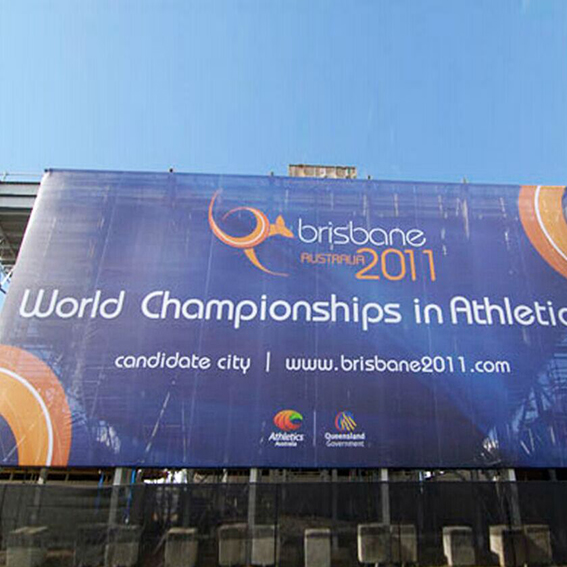

On refurbishment projects the banner ties to scaffolding that already carries wind load, so every square metre of sail area counts. A 270 gsm mesh weighs a fraction of the equivalent frontlit panel and tensions across a full elevation without bridging. We weld long drops from roll width and mark lift lines on the proof so the installer can align to standards.

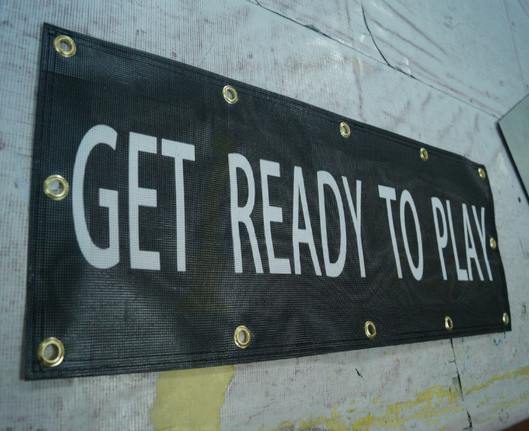

Temporary sports fencing, crowd barriers and event perimeters use mesh because spectators and cameras sit close. Printed mesh reads correctly from both sides in daylight, so one banner serves the pitch side and the approach path. We size logos to survive the weave, keep flat colour fields out of the design and set grommet spacing for fast bungee rigging and strike.
Where a fence faces open water or an elevated carriageway, wind is continuous rather than occasional. Customers on those sites usually move up to 340 or 360 gsm and accept the extra weight for a longer service window. We recommend the heavier grade with closer grommet centres, and we will say plainly when mesh is wrong for the job, rather than sell you the wrong cloth.
Each roll is inspected for weave alignment and coating faults before printing, and the printed panel is checked against the approved strike-off in daylight and under 6500 K light. We measure hem width, grommet spacing and overall dimensions, then pull-test a grommet on the first and last banner of the run. Print density is read at the centre and at both edges, because mesh prints lighter near the selvage.
Banners are rolled print-side out on a rigid core, wrapped in polyethylene and packed in a labelled carton or on a pallet for full-container orders. We do not fold mesh. Each roll carries order number, size, grommet pitch and a scan label, and mixed designs can share a carton.
